Description

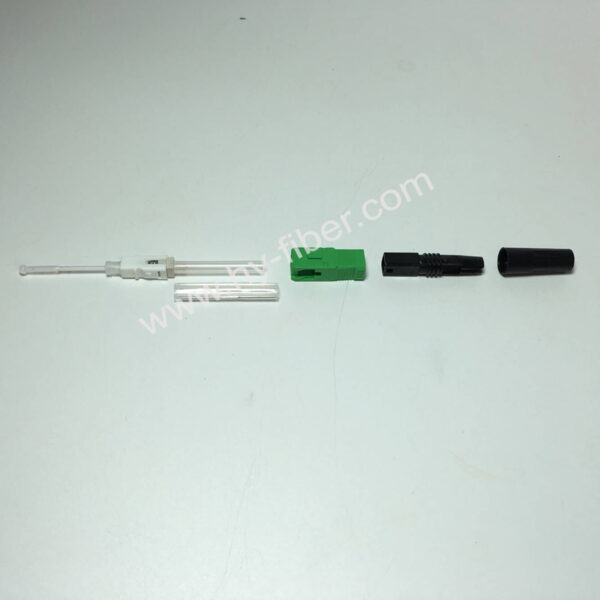

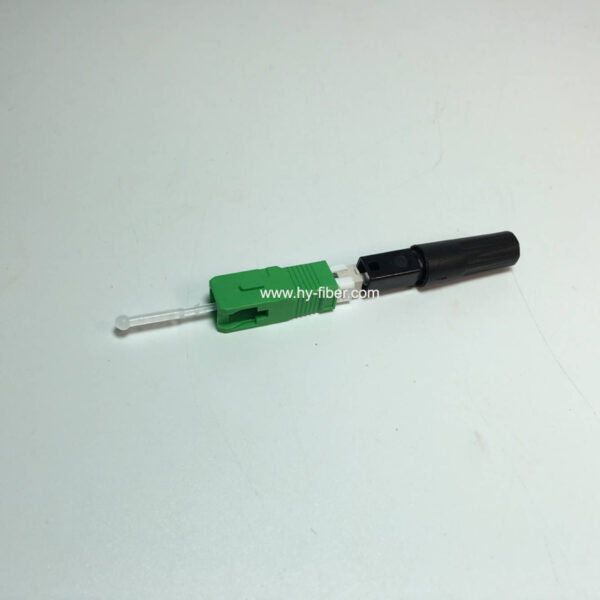

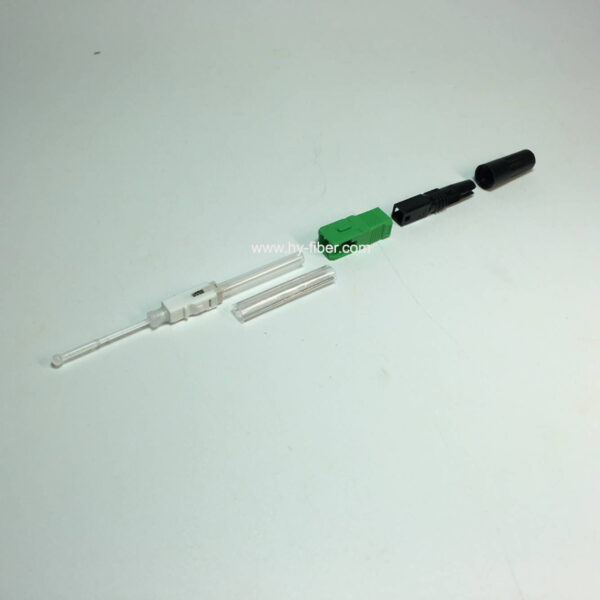

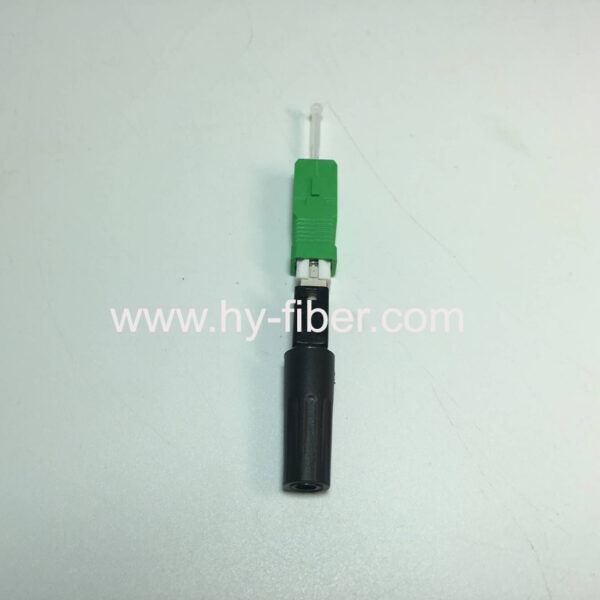

SC Field Assembly Optical Connector
Specifications
SC Quick Assembly Connector,Fast Connector:
Factory-installed fiber stub
No epoxy or polishing required
Quick Assembly Connector
Quick Assembly SC connector can provide quick and easy terminations of fibers in the field,and options are available for 900 micron and 250 micron.
It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels.
This connector system removes any requirement for epoxy, adhesives or costly curing ovens, with features of high installation quality, high success rate and high reliability.
HY-3-CF/SC900: (for φ0.9 tight buffer optical fiber)
HY-3-CF/SC2.0: (for φ2.0-3.0 indoor optical cable)
HY-3-CF/SC250: (for 3.1×2.0 indoor optical drop cable)
Features:
Factory-installed fiber stub
No epoxy or polishing required
Quick and easy fiber termination in the field
Eliminates cable excess length and pigtail splice storage
Cost effective
Application:
Distribution frames
Maintenance or emergency restoration of fiber networks
FTTH Outlets
Patch panels
Parameter:
|
Item |
Parameter |
|
Insertion Loss(dB) |
≦0.30 |
|
Temperature(℃) |
-40℃～+80℃ |
|
Repeatability(dB) |
≦0.1 |
|
Return Loss |
≧50 |
|
Cable diameter(mm) |
OD0.9mm,2.0mm,3.0mm or Drop wire cable |
|
Ferrule material |
Zirconia Ceramic |
