Description

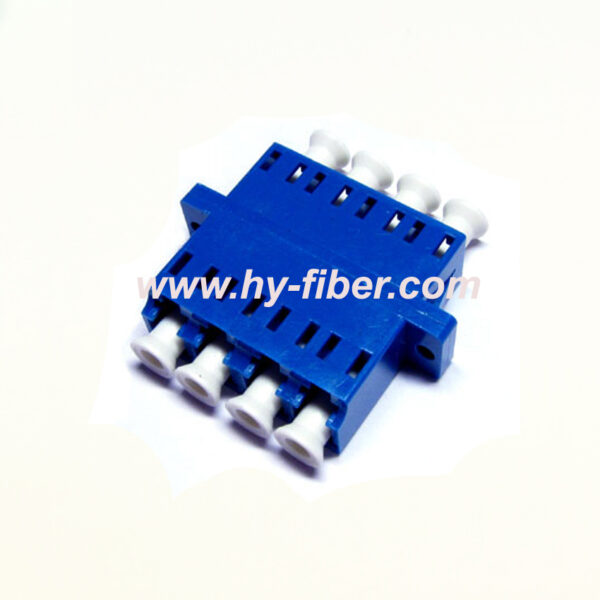

GH offers a range of high quality LC adaptors which have high precision alignment sleeves for reliability and improved reconnectability. For single mode and multimode both applications a ceramic sleeve are supplied to ensure a high precision alignment. The housing is available in different colours with options for flange or flangeless body, metal clips or inbuilt clipsSpecification
Features / Benefits
- Complies with IEC 61754-4 and IEC 60784-14 standards
- High precision alignment sleeve
- Low insertion loss and improved reconnectability
- RoHS compliant
- Available in simplex and duplex adaptors
- SC simplex adaptors are available with a shutter
Applications
- Telecommunications networks
- CATV, LAN, MAN and WAN application
- Data processing networks
- Cable television
- Fibre-to-the-home
- Premises distribution
Termination Specification
| Optical Performance | Ceramic | Conformance |
| Insertion Loss | 0.20dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC61300-2-2 |
| Receptacle Retention force | 2N – 5.9N | IEC 61754-4 |
| Drop test | Drop height 1m, 5 drops | IEC 61300-2-12 |
| Operating Temperature | -25 to +70,12 cycles | IEC 61300-2-22 |
