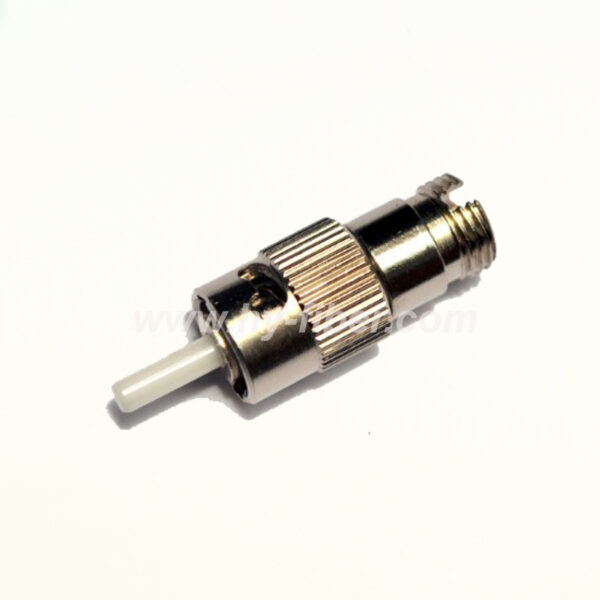

ST-FC Male To Female Hybrid Adapter 50pcs/pack

$300.00

Each pcs=USD6.00/pc

Description

Description

Hybrid Fiber Adapters (Converting fiber adapter) provide interconnection between two different fiber Optical types.  There are two type of Hybrid fiber adapter, including Male-Female hybrid fiber adapter and Female-Female hybrid fiber adapter.

Male-Female hybrid fiber adapter(Build-out Type hybrid fiber adapter) is a fiber adapter with a connector plug(male) end and an adapter socket(female) end. We call it Male-Female Hybrid fiber adapter, Such as ST male at one side,FC female the order side.

Our Hybrid Fiber Adapters are comprised of a polymer/metal outer body and inner assembly fitted with a precision alignment mechanism.  The combination of a ceramic/phosphor bronze alignment sleeves and precision molded polymer housing provides consistent long-term mechanical and optical performance.

We provide both Male-Female and Female-Female hybrid fiber adapters bridging popular connector types, such as ST, FC, SC, LC, MU, FDDI, E2000, MPO. They are precision made and manufactured to demanding specifications.

Termination Specification

Optical Performance Ceramic Conformance
Insertion Loss 0.20dB IEC 61300-3-4
Mating Durability 500 IEC61300-2-2
Receptacle Retention force 1N – 2.5N IEC 61754-4
Drop test Drop height 1m, 5 drops IEC 61300-2-12
Operating Temperature -25 to +70,12 cycles IEC 61300-2-22
