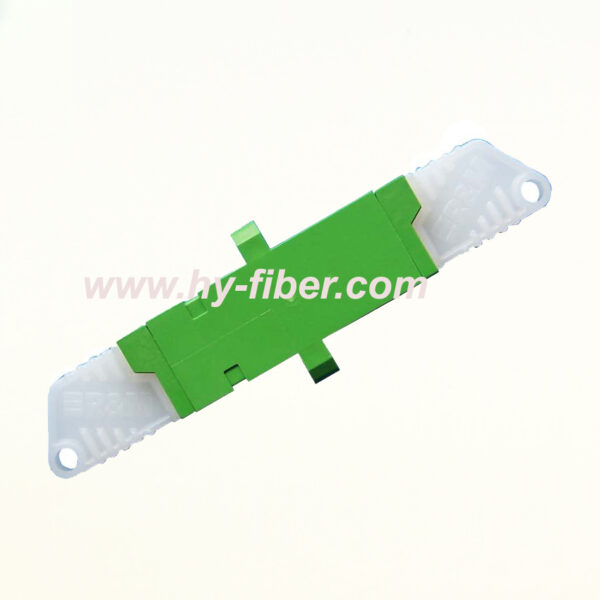

E2000/UPC SM/MM Simplex Adapter 100pcs/pack

$300.00

Each pcS=USD3.0/pc

Description

Description

GH offers a range of high quality adaptors which have high precision alignment sleeves for reliability and improved reconnectability. For single mode and multimode both applications a ceramic sleeve are supplied to ensure a high precision alignment. The housing is available in different colours with options for flange or flangeless body, metal clips or inbuilt clips

Features / Benefits

  1. Complies with IEC 61754-4 and IEC 60784-14 standards
  2. High precision alignment sleeve
  3. Low insertion loss and improved reconnectability
  4. RoHS compliant
  5. Available in simplex and duplex adaptors



Applications

  1. Telecommunications networks
  2. CATV, LAN, MAN and WAN application
  3. Data processing networks
  4. Cable television
  5. Fibre-to-the-home
  6. Premises distribution



Termination Specification

Optical Performance Ceramic Conformance
Insertion Loss 0.20dB IEC 61300-3-4
Mating Durability 500 IEC61300-2-2
Receptacle Retention force 2N – 5.9N IEC 61754-4
Drop test Drop height 1m, 5 drops IEC 61300-2-12
Operating Temperature -25 to +70,12 cycles IEC 61300-2-22
