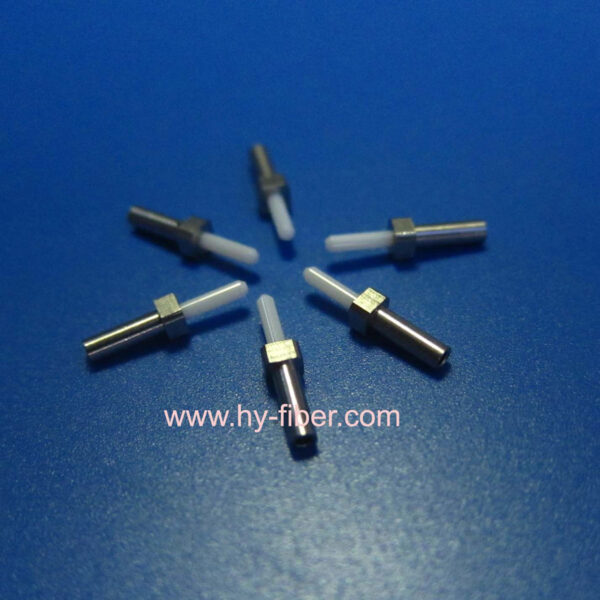

1.25mm OD Single-mode Ceramic Ferrule with flange for MU Fiber Connector 1.0μm 200pcs/pack

$60.00

Each pcs=USD0.3/pc

Description

Description

Fiber ceramic ferrules is the key components for the fiber optic interconnection accessories. With imported Zirconia powder from Japan, we could make mass production and R&D team guarantee the high performance, high standard, yet low-cost of products.

Specification

Product Features:

  • Good concentricity and dimensional accuracy;
  • High strength and endurability, good anti-aging performance;
  • Low insertion loss, high pull-out performance.
LC Ferrule Single Mode Multi Mode Master
Outside Diameter Φ1.249
OD Tolerance ±0.0005 0.001 0.0003
Concentricity ≤0.001 ≤0.004 ≤0.0006
Inner Diameter Φ0.125-Φ0.127
ID Tolerance +0.001/0 +0.003/0 +0.0005/0
Ferrule Length SC:10.5±0.05
End Curve Radius 6.4+0.1/-0
