Description
Description

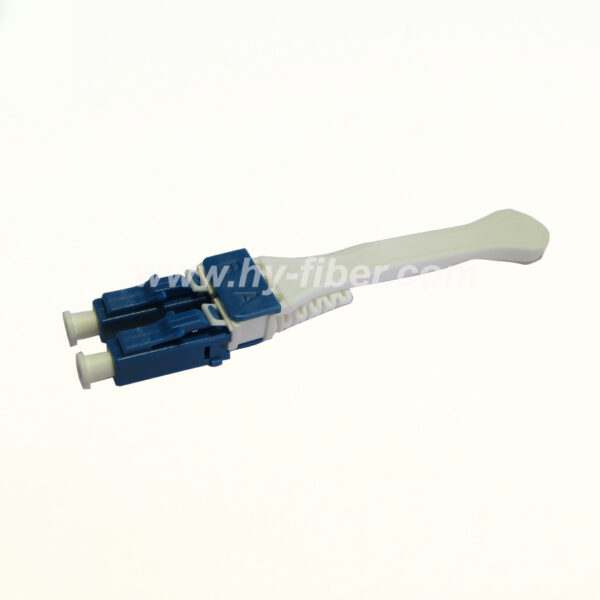

The GH LC-HD is a totally unique design which can further increase panel density over currently available solutions and allow for the highest density possible. A gentle pull on the tab will disengage it from an extremely dense fiber optical panel. The pull tab is a perfect location to affix a connector label to help in the quick identification of the connector.
Features
Easy to release trigger connector
- The GH LC-HD’s lever design utilizes a flexible “pull-tab” allowing for the connector to be disengaged easily from densely loaded panels without the need for special tools.
- 60% increase in density Because the GH LC-HD connector can be removed using a simple pull tab, it eliminates the need for finger access to the LC latch mechanism, therefore LC adapters can now be mounted much closer than spacing required in the past.
LC-HD
| Connector type | Ferrule ID | Housing Color | Boot Type | Boot Color |
| LC-HD Simplex | SM: Premium 125 | SM: Blue | LC-HD Mini 900um | White |
| LC-HD Duplex | SM: Low Loss 125 | MM: Beige | LC-HD Mini 2.0mm | |
| MM: Premium MM | SM APC: Green | LC-HD Mini 3.0mm | ||
| MM: OM3 Aqua |
Pull Tab
| Type | Connector Type to Use with | Tab Length | Tab Color |
| LC-HD Pull Tab | Simplex | 61mm | White |
| Duplex |
