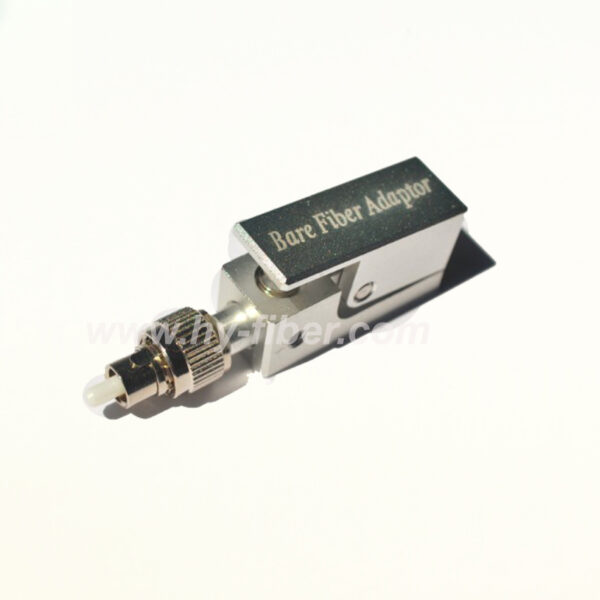

FC Bare Fiber Adapter
Description
The FC bare fiber adapters use 2.5mm diameter ceramic ferrule with PC end-face. These adapters enable quick and easy temporary connections of single-mode and multimode fibers. They are very useful for connecting fibers to power meters, Optical time-domain reflectometers (OTDRs) and a variety of other instruments enabling in-situ functional testing without having to attach a permanent connector.
Features / Benefits
- Simple to use
- Suitable for fiber with Coating diameter of 250um and 900um Optical fiber with hole diameter Between 125-127um can be used
- Multimode or Single mode Connectors
Applications
- OTDR acceptance testing
- Power meter hookup
- Approximate loss / Continuity testing
- Talk set connection
- Visible fault location
Specification
| Optical Performance | Ceramic | Conformance |
| Insertion Loss | 0.20dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC61300-2-2 |
| Receptacle Retention force | 1N – 2.5N | IEC 61754-20 |
| Operating Temperature | -25 to +70,12 cycles | IEC 61300-2-22 |
