72 Fiber FTTH terminal box( HY-20-T72A)
Description

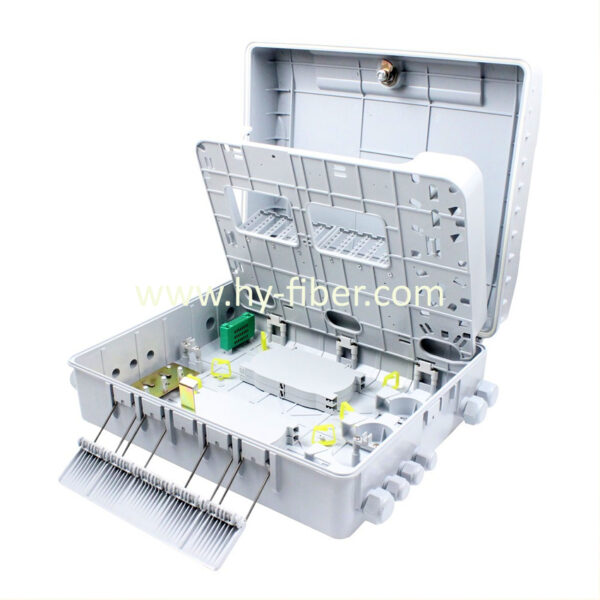

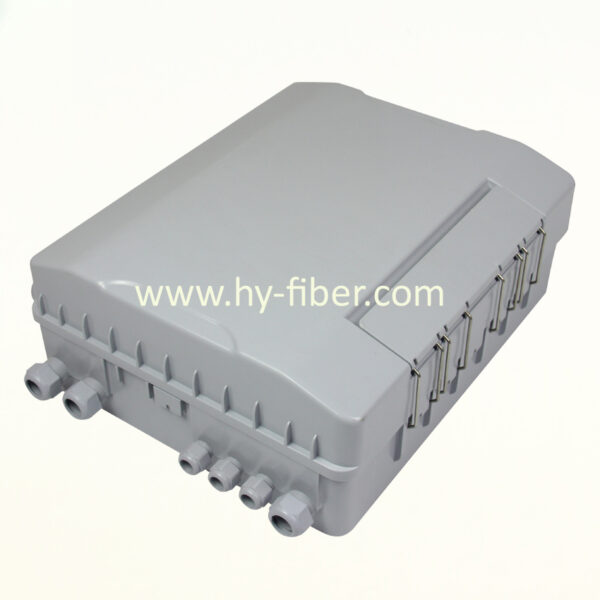

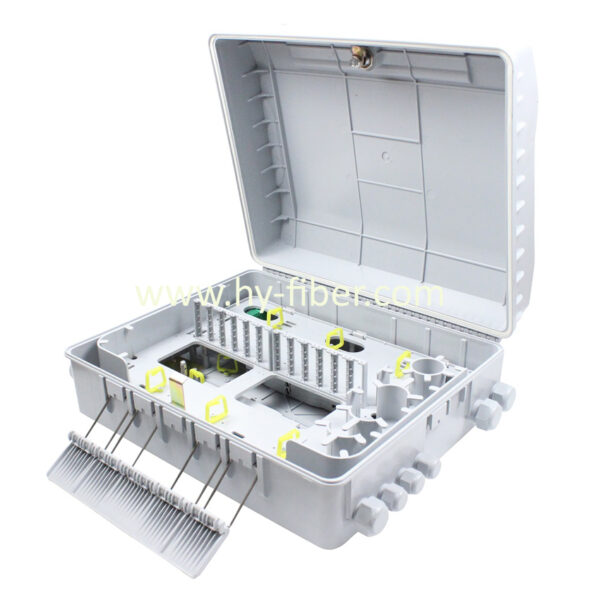

This Lockable distribution box offers the ability to terminate 72 fibers housed in a strong robust SMC enclosure for indoor and outdoor applications.
With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibers.
In addition to the interchangeable adaptors the enclosure also offers up to 4 exit points for patching cables and 2 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armored cable.
Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.
Feature
- Up to 72 fibres
- Removable splice tray for easy installation
- Multiple adaptor options available
- Accepts loose tube, distribution and pre-terminated cables
- Integrated bend radius protection
- Removable door for ease of installation
- ROHS compliant
- Supplied with 72 heatshrink splice protectors
- Supplied with transit tubing
- Supplied with wall fixings and tie wraps
Application
- Data centres, premise installations, telecommunication networks
- Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Wall mounted/Pole mounted,Indoor/outdoor applications
- 1×64 PLC splitter, fast connector and adaptor inside
Specification
| Description | |
| Dimension | 460x390x190mm |
| Capacity | 72fibers |
| Adapter | 72xsc simplex, 72xlc Duplex |
| Operation Temperature | -40c~+60c |
| N.W/G. W | 4.9/5.5kgs |
Order Information: HY-20-T72A
