Description
Description:

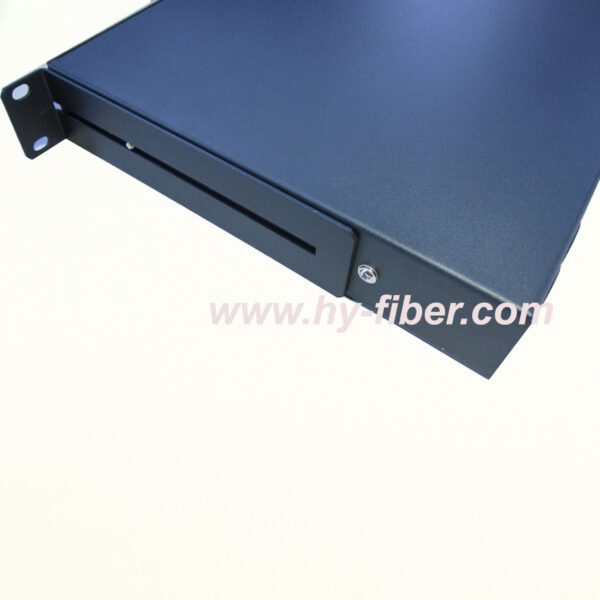

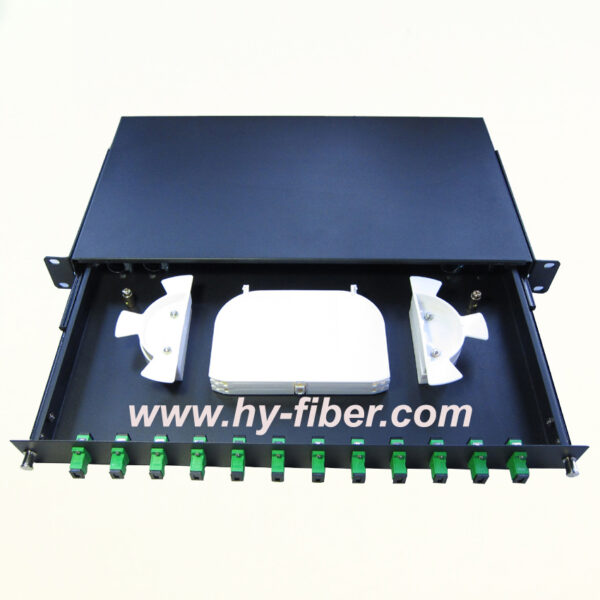

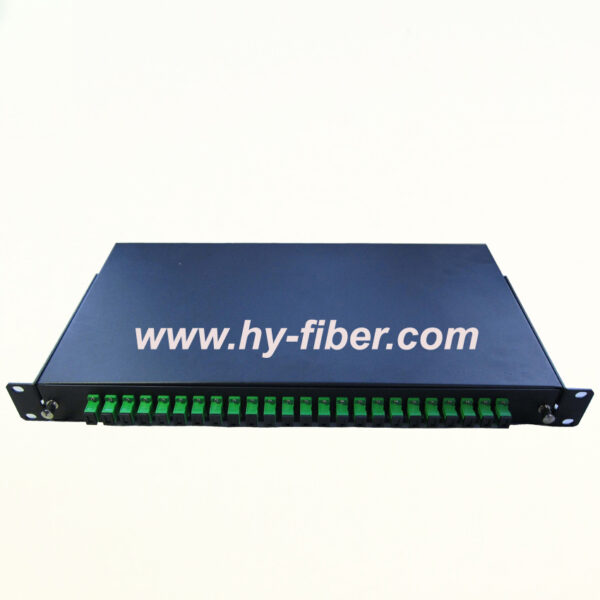

HY-8-F2-A24 Inner drawer-type structural design which is continent for operating and adopting metal structure with dual functions of splice and distribution. Can be operated directly on the rack or cabinet, there’s no need to remove the installation and maintenance; It is without the need to operate on the cover can be removed when installing and maintaining.
- The 19 “standard installation interface and its box body is dealed with galvanizing, oxidation and electrostatic plastic spraying and has beautiful appurtenance.
- It fits for both common bundle type cables and ribbon type cables.
- It can be installed in FC, SC, ST, FC(twin-core),E2000 adapters according to requirements.
- Adopting the adapter plate to the fixed end fix the adapter to increase the versatility and interchangeability.
- It has clear alignment with the function of pigtails tray storage.
- Ear plate is symmetrical, with the unique embedded style structural design ,the fiber optic cable is pulled to it which looks like more flexible and convenient.
- It can adjust the depth of the box installation, which has stong flexibility and versatility when installing, and easily convenient for construction and maintenance.
- It can adds steel core fixtures according to customer requirements.
Order Information：
| Item no. | Dimension（mm） | Max Capacity (cores) | Remark |
| HY-8-F2-A24 | 430×250×1U | 24 | The case body is made from cold rolled steel plate, and the surface use the technology of electrostatic spraying, we can install adaptors for you. available for SC\ST\LC\FC |
