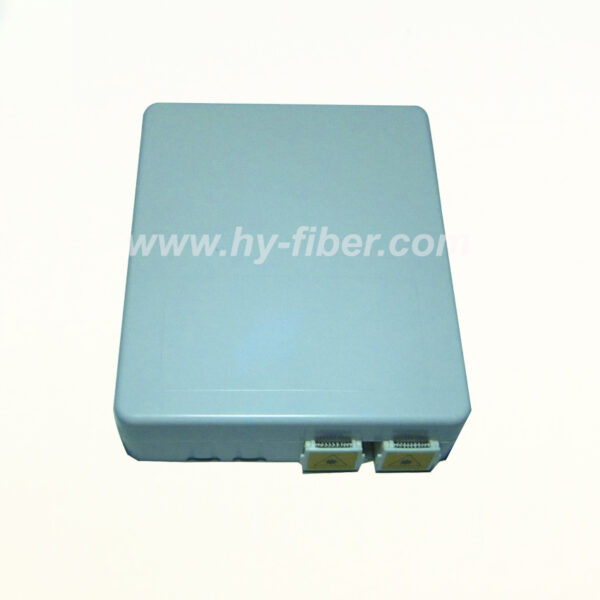

Compact FTTH Terminal Box(HY-20-T2C)
Description
The GH compact termination box is designed for use in residential and business applications for the termination of up to two fiber. The wall box enables the installation of either a single Blown Tube cable using up to two 2 fibre ruggedized cables to be spliced to four SC pigtails (PC or APC),which connect to adapters at the base of the unit. The unit can be quickly installed within an office, house or communication room environment.
Features / Benefits
- Ergonomic design.
- Ability to allow cables to enter from rear or bottom of the unit.
- All fibres are positively managed to maintain a 30mm minimum bend radius.
- Optional Removable rear entry cable management.

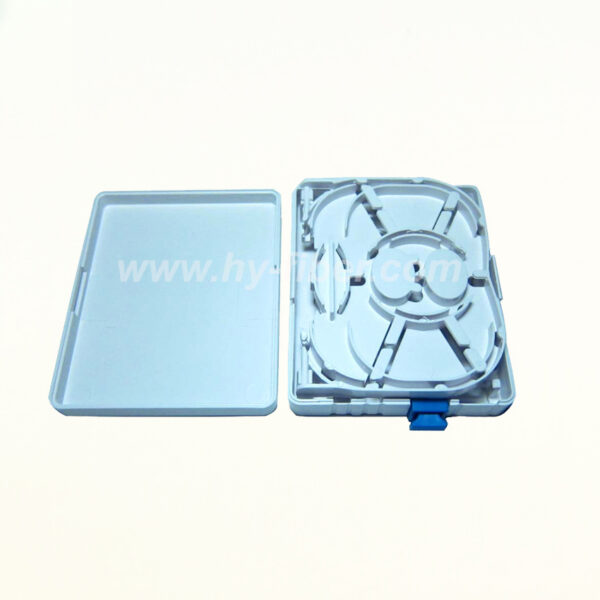

- Flip tray to allow access to connectorised tails and cable entry.
- Removable cover for easy access.
- Tamperproof cover security screws available as an option.
- Unit manufactured from fire resistant UL94-V0 rated material.
- Patchcords exit unit on bottom face and are protected by two protection covers.
- Standard colour white. Other colours available on request.
Termination Specification
| Descriptions | Details |
| Number of splice trays | 1 |
| Maximum Fibre Capacity | 1/2 |
| Maximum no. of customer feeds: | 1/2 pigtails |
| Required space envelope (mm) | (l) 80 x (w) 100 x (d) 22 |
| Operating temperature | 20oC to + 50oC (5 to 95% RH) |
| Material | FR High Impact Polystyrene |
| Packing Dimensions (mm): | (w) 100 x (h)80 x (d)27 |
| Packed Weight (kg): | 0.55 |
| Net weight (kg): | 0.50 |
Adaptor Applicants:
| Descriptions | QTY |
| SC simplex with flange | 1 pcs |
| SC simplex without flange | 2 pcs |
| SC shutter simplex with flange | 1 pcs |
| SC shutter simplex without flange | 2 pcs |
| LC duplex with flange | 1 pcs |
| LC duplex without flange | 2 pcs |
| LC shutter duplex with flange | 1 pcs |
| LC shutter duplex without flange | 2 pcs |
