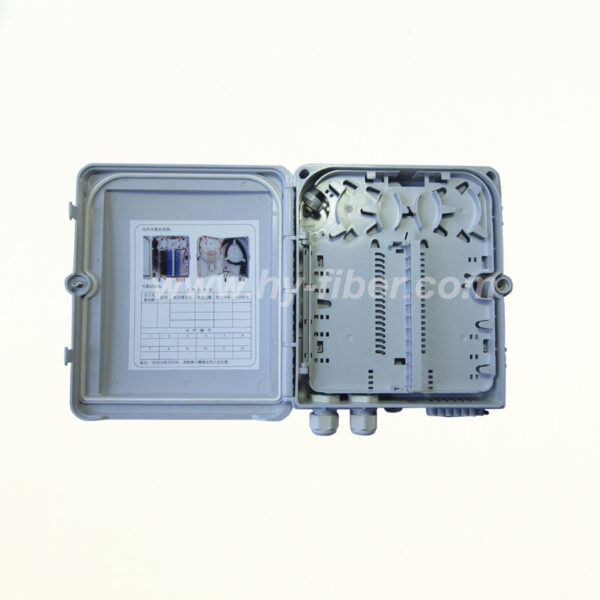

12 port FTTH terminal box(HY-20-T12B)
Description
This Lockable IP54 distribution box offers the ability to terminate 24 fibres housed in a strong robust ABS+PC enclosure for indoor and outdoor applications.
With the ability to us both SC simplex and LC duplex adaptor types offering a flexible solution to the end user, enabling them to incorporate a multi functional enclosure which allows easy access during installation or re-work with no disturbance of the existing cable or fibres.
In addition to the interchangeable adaptors the enclosure also offers up to 24 exit points for patching cables and 1 standard cable entry point for loose tube, tight buffer, pre-terminated and steel tape armoured cable.
Each enclosure has integrated strength member tie positions and bend radius protection with the addition of a removable front door allowing for quick and easy installation.
Feature
- Up to 24 fibres
- Removable splice tray for easy installation
- Multiple adaptor options available
- 4 adaptor positions
- IP 54
- Accepts loose tube, distribution and pre-terminated cables
- Integrated bend radius protection
- Sealing glands for up to 24 exiting cables + 1 incoming cable
- Removable door for ease of installation
- ROHS compliant
- Supplied with 24 heatshrink splice protectors
- Supplied with transit tubing
- Supplied with wall fixings and tie wraps
Application
- Data centres, premise installations, telecommunication networks
- Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Wall mounted,pole amounted,Indoor/outdoor applications
Specification
| Description | |
| Dimension | 225x195x65mm |
| Capacity | 12 fibers/24 fibers |
| Adapter | 12xSC simplex, 12xLC Duplex |
| Operation Temperature | -40c~+60c |
Order Information: HY-20-T12B
