Description

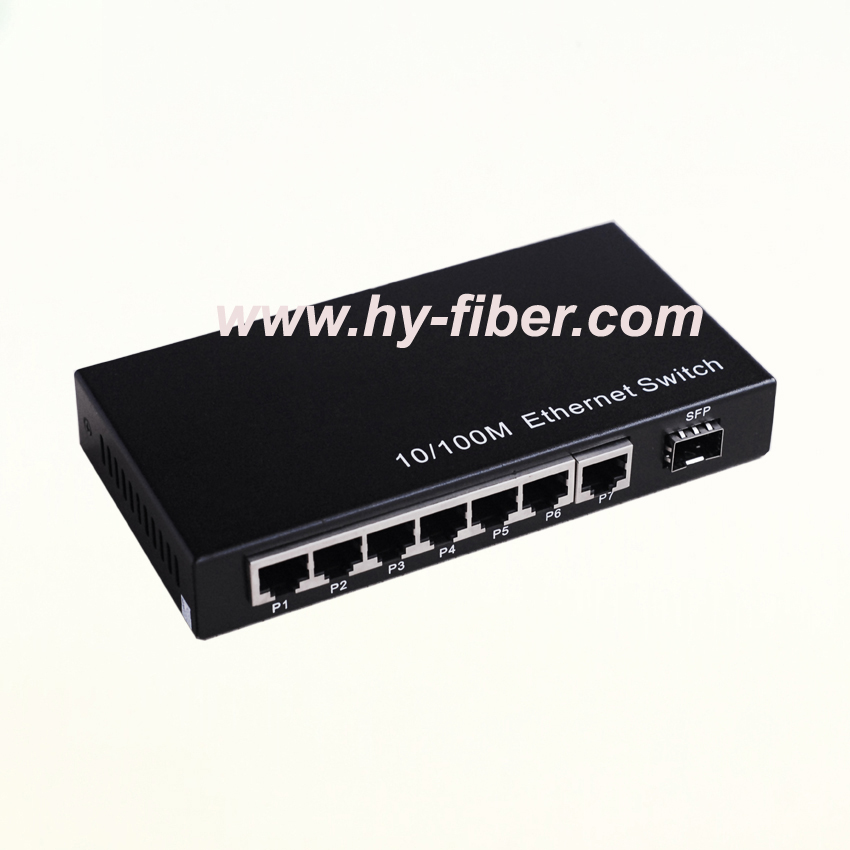

HY-11-SF08 Fast Ethernet Switch complies with IEEE802.3, 10Base-T and IEEE802.3u, 100Base-FX. There are 7 10/100Mbps auto-negotiable UTP ports and 1 FIBER port in the switch.
Every UTP ports of HY-11-SF08 Fast Ethernet Switch can auto-negotiate the speed (10/100Mbps), the data transmission duplex way (Full duplex/half duplex), and the auto crossover of RJ45 port (MDI / MDI-X).
HY-11-SF08 is an excellent all-purposed Optical Fiber Switch with work group, it can be used as switch equipment in small network.
. Technical Specification
- General Specification
Operating standards: IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX and 100Base-FX Fast Ethernet
ANSI/IEEE STD 802.3 10/100M auto-negotiated
Protocol: CSMA/CD
Data Transmitting Rate: Ethernet: 10Mbps (Half Duplex)
20Mbps (Full Duplex)
Fast Ethernet: 100Mbps (Half Duplex)
200Mbps (Full Duplex)
Cable: UTP or STP, CAT. 5 or CAT. 6, the max distance up to 100m
Fiber: (multimode): 50/125, 62.5/125μm (the max distance up to 2km)
Fiber (singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm (the max distance up to 20-120km)
Connector: Seven RJ-45, 10/100Mbps auto-negotiable ports; one FIBER ports
Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex
LED indicators: POWER, 100M, Link/Act,
Flow control:
Full Duplex: IEEE802.3x flow control;
Half Duplex: bake pressure flow control
MAC address table: 1K
- Physical Characteristics
power supply： AC100 ～ 260V, 50Hz; DC5V 1A
Power: 5W
Environment temperature：0 ～ +50℃
Storage temperature:：：-25 ～ +70℃
Humidity:：5% ～ 90%
Dimensions：83(L) × 160(W) × 25(H)mm
