Description

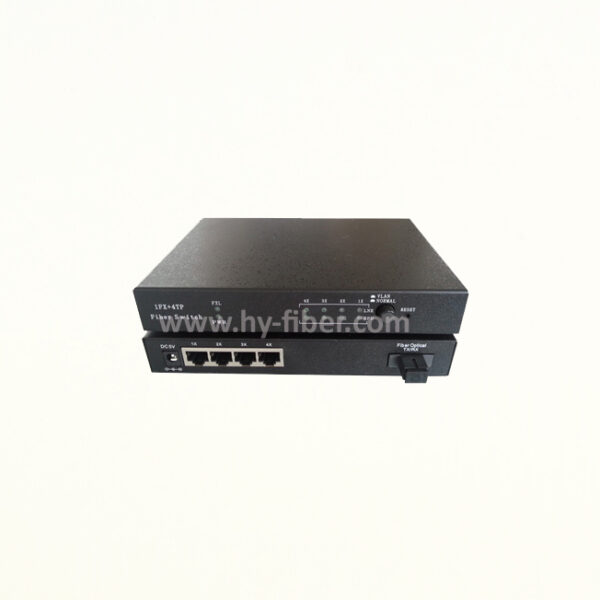

HY-11-SF05 series of Optical Fiber Switch complies with IEEE802.3, 10Base-T and IEEE802.3u, 100Base-FX. There are five models: HY-11-SF05A, HY-11-SF05B, HY-11-SF05C, HY-11-SF05D. Under every model there are three 10/100Mbps auto-negotiable UTP ports and ONE or TWO 100M fiber ports for different use.

HY-11-SF05A Optical Fiber Switch: there are four 10/100Mbps auto-negotiable UTP ports and one fiber port.

HY-11-SF05B Optical Fiber Switch: there are three 10/100Mbps auto-negotiable UTP ports and two fiber ports.

HY-11-SF05C Optical Fiber Switch: there are two 10/100Mbps auto-negotiable UTP ports and three fiber ports.

HY-11-SF05D Optical Fiber Switch: there are one 10/100Mbps auto-negotiable UTP port, four  fiber portst.

Every UTP ports of HY-11-SF05 Optical Fiber Switch can auto-negotiate the speed (10/100Mbps), the data transmission duplex way (Full duplex/half duplex), and the auto crossover of RJ45 port (MDI / MDI-X).

HY-11-SF05 is an excellent all-purposed Optical Fiber Switch with work group, it also can be used as optical fiber repeaters and single/multimode media converter.

Technical Specification

• General Specification

Operating standards:  IEEE802.3 10Base-T Ethernet

IEEE802.3u 100Base-TX and 100Base-FX

ANSI/IEEE STD 802.3 10/100M auto-negotiated

Protocol: CSMA/CD

Data Transmitting Rate:

Ethernet: 10Mbps (Half Duplex);

20Mbps (Full Duplex)

Fast Ethernet: 100Mbps (Half Duplex);

200Mbps (Full Duplex)

Cable: UTP or STP, CAT. 5 or CAT. 6

Fiber: (multimode):  50/125, 62.5/125μm

Fiber (singlemode):  8.3/125, 9/125, 10/125μm

Connector:  RJ-45; SC/ST/FC fiber ports

Duplex choose: every RJ45 port N-WAY auto-choose Full/Half Duplex

LED indicators: POWER, 100M, Link/Act, FDX

Flow control:

Full Duplex: IEEE802.3x flow control;

Half Duplex: bake pressure flow control

MAC address table: 1K

Physical Characteristics1.

power supply： AC100 ～ 260V, 50Hz

Power: 6W

Environment temperature：0 ～ +50℃

Storage temperature:：：-25 ～ +70℃

Humidity:：5% ～ 90% no condensing

Dimensions：85(L) × 123(W) × 27(H)mm
